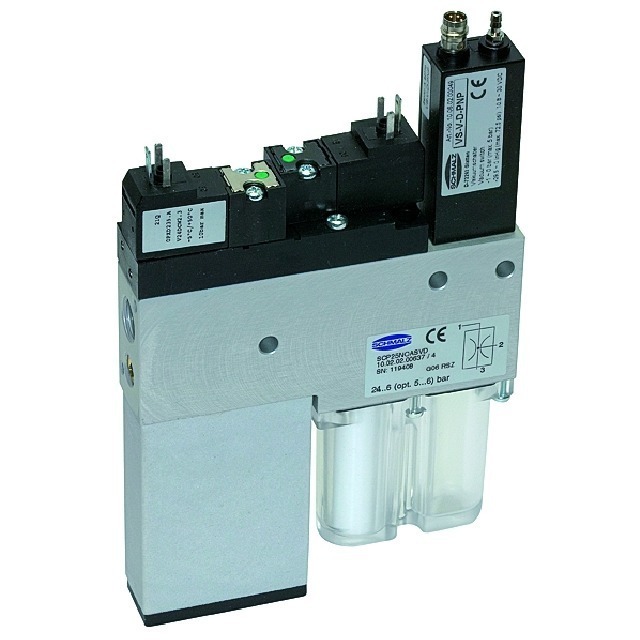

Compact ejector CP, digital vacuum switch with air-saving regulation
Description:
Compact ejector G 3/8 i. -CP 251
Item number:
10216604
EAN:
4047322198776
Minimum Order Quantity:
1
Piece
Product information "Compact ejector G 3/8 i. -CP 251"
Compact ejector "CP" digital vacuum switch, air-saving control, nozzle size 1.5 mm, compressed air/vacuum connection G 1/8 IG
Purely pneumatically operated vacuum generator that works according to the Venturi principle. Compressed air is introduced into the ejector through A and flows through nozzle B. Immediately after the flow-through nozzle, negative pressure is created, causing air to be drawn in through vacuum port D. Extracted air and compressed air exit together through silencer C.
Features:Vacuum generator with integrated valve technology and system monitoring.Suction and blow-off control possible without external valvesoptimized air consumption due to finely tuned suction capacityminimized energy costs in continuous operation due to optimum air-saving controlconvenient setting via membrane keypad and display via LED possible
Application area:
Handling of airtight or slightly porous workpieces in
fully automatic handling systems, e.g. in the fields of robotics,
automotive engineering, packaging technology, electronics, electrical engineering,
sheet metal processing.
Purely pneumatically operated vacuum generator that works according to the Venturi principle. Compressed air is introduced into the ejector through A and flows through nozzle B. Immediately after the flow-through nozzle, negative pressure is created, causing air to be drawn in through vacuum port D. Extracted air and compressed air exit together through silencer C.
Features:Vacuum generator with integrated valve technology and system monitoring.Suction and blow-off control possible without external valvesoptimized air consumption due to finely tuned suction capacityminimized energy costs in continuous operation due to optimum air-saving controlconvenient setting via membrane keypad and display via LED possible
Application area:
Handling of airtight or slightly porous workpieces in
fully automatic handling systems, e.g. in the fields of robotics,
automotive engineering, packaging technology, electronics, electrical engineering,
sheet metal processing.
| Manufacturer: | Riegler |
|---|
