Hydraulic rod end INA/SKF
Description:

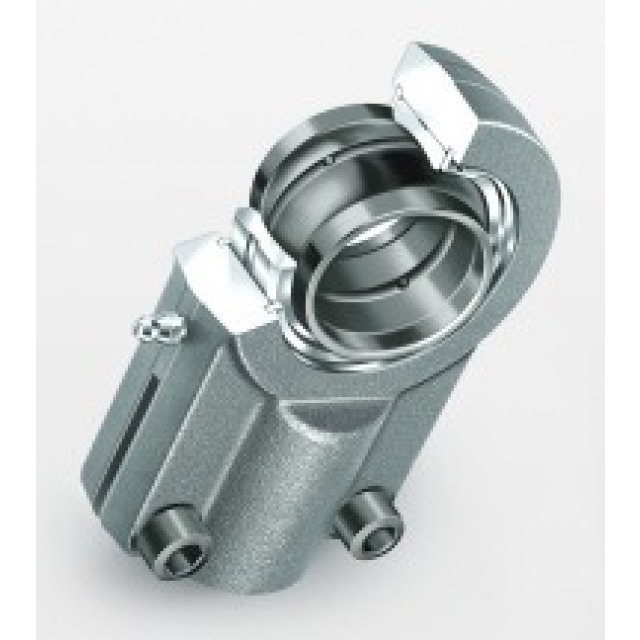

Rod end GIHNRK32-LO-B INA
Item number:
10019800
EAN:
4012802523898
Minimum Order Quantity:
1
Piece
Product information "Rod end GIHNRK32-LO-B INA"
Hydraulic rod ends are equipped with radial spherical plain bearings GE..-LO or GE..-DO.
They have steel/steel sliding pairings, absorb radial forces in the direction of tension or compression, transmit movements and forces and are suitable for alternating radial loads.
The heads can be screwed on by means of a thread in the shaft or welded on .
Heads with circular weld-on ends have a 45° welding chamfer and a centering possibility by means of the centrally located dowel pin. They are suitable for piston rods. Hydraulic rod ends with rectangular cross-section are excellent for cylinder bases. The heads are slotted on both sides up to d = 50 mm, from d = 50 mm slotted on one side and can be relubricated via tapered grease nipples.
They have steel/steel sliding pairings, absorb radial forces in the direction of tension or compression, transmit movements and forces and are suitable for alternating radial loads.
The heads can be screwed on by means of a thread in the shaft or welded on .
Heads with circular weld-on ends have a 45° welding chamfer and a centering possibility by means of the centrally located dowel pin. They are suitable for piston rods. Hydraulic rod ends with rectangular cross-section are excellent for cylinder bases. The heads are slotted on both sides up to d = 50 mm, from d = 50 mm slotted on one side and can be relubricated via tapered grease nipples.
Refine your selection
Price, availability and CAD can be seen by our logged-in business customers.
Quantity in
Piece
All 33 Product-Variants
Filter variants
| Item number | Inside Ø | Manufacturer | Ref. / Type of construction | Type | Version | Buy |
|---|
